Multi Pole High Energy Product Anisotropic Neodymium Flexible Magnet

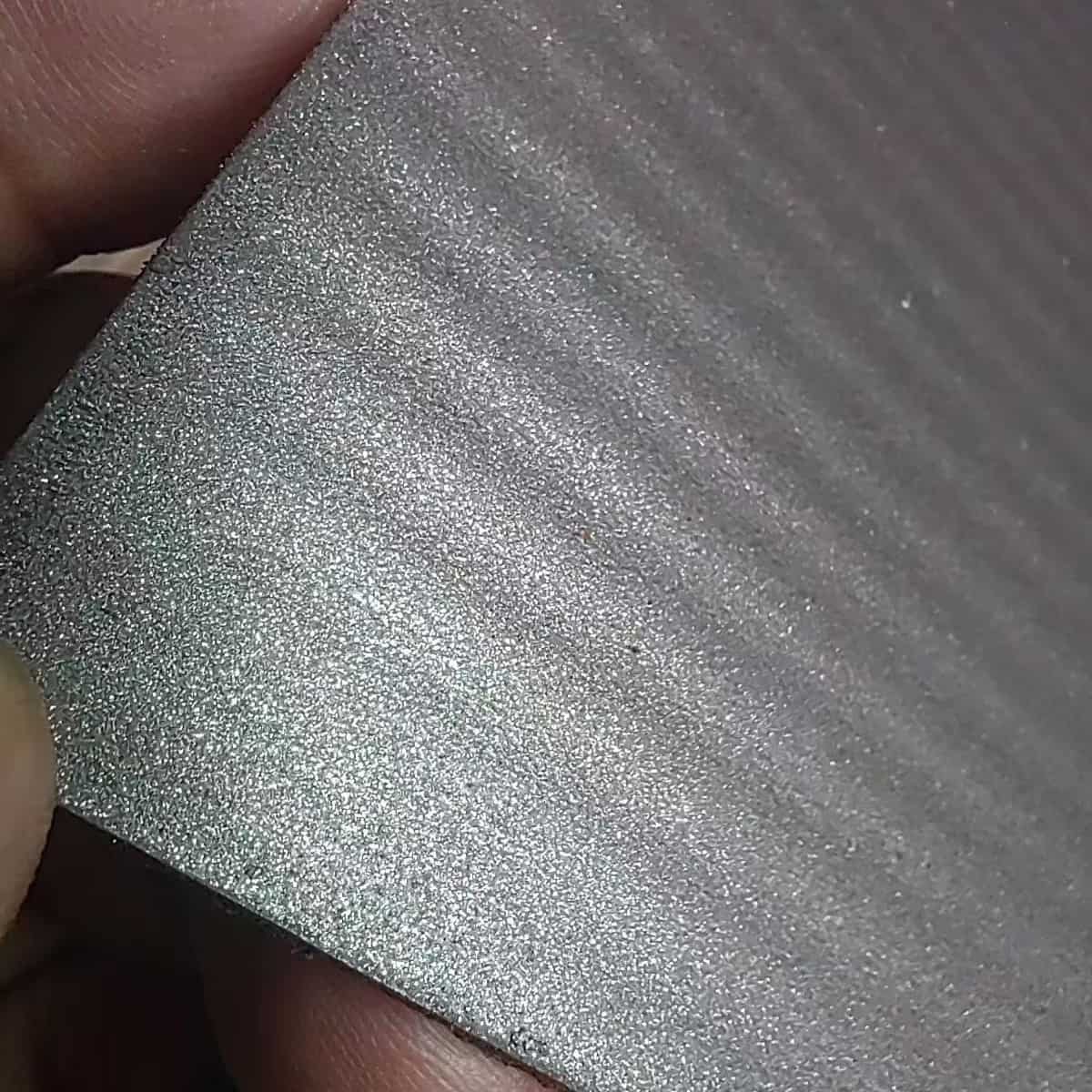

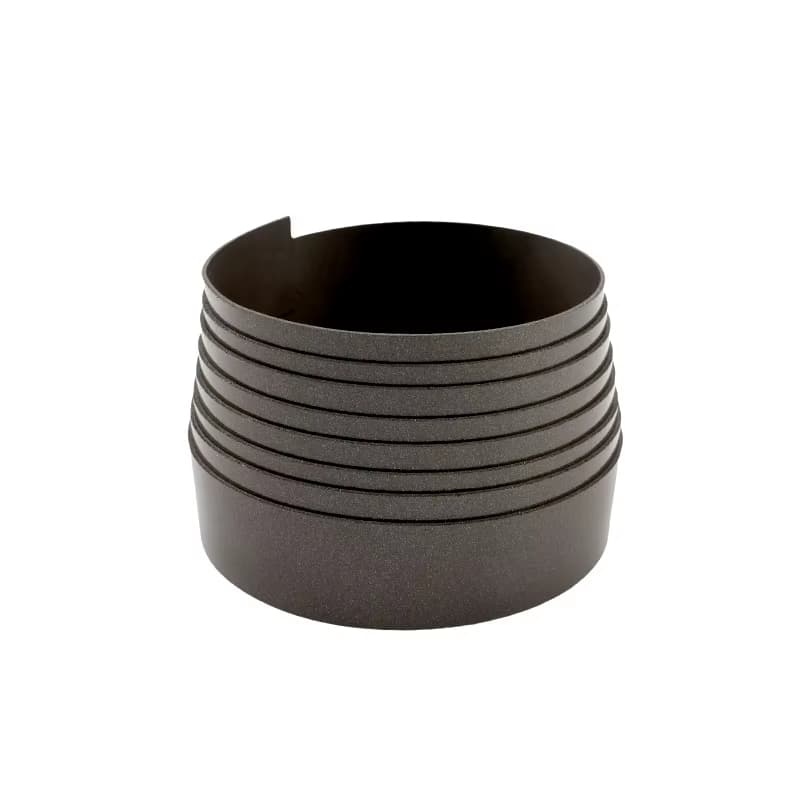

Neodymium flexible magnet combines high‑energy rare‑earth NdFeB powder with a rubber matrix for strong magnetic force and excellent flexibility. It is ideal for industrial applications such as motor rotors, sensors, and encoders where space is limited or surfaces are curved.
Packaging :
Bulk packing, cartonsPayment :
100% T/T in advancceProduct Origin :
ChinaDelivery time :
15-30 days, depends on the quantityDimensions (DXH) :
CustomsBrand :
KINGSMAGNETCertificates :
ISO/REACH/ROHSMaterial :
NeodymiumProduct Overview
Neodymium flexible magnet is a high‑energy magnetic material made by compounding rare‑earth NdFeB powder with a flexible rubber matrix (such as NBR, CPE, or PVC) through extrusion or calendering. It retains the process advantages of rubber magnets – bendable, cuttable, and die‑cuttable – while delivering magnetic performance far superior to conventional ferrite rubber magnets.
⇒ Learn more professional insights
 |
 |
 |
 |

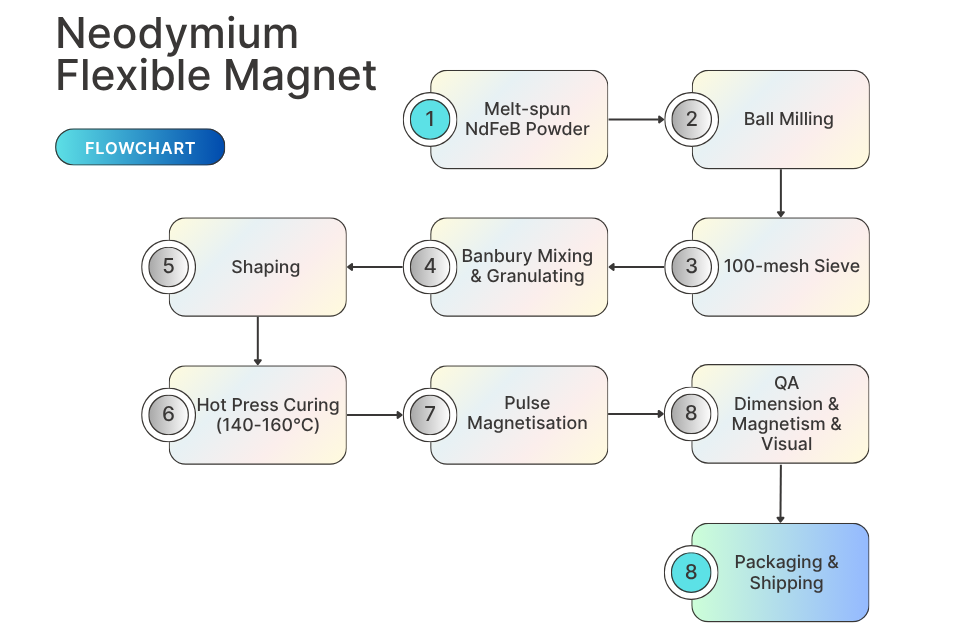

Production Process
Performance Parameters
| Material | Grade | (Br) | (Hcb) | (He) | (BH)max | Max. Working temp. | Temp. Coefficient of Br | ||||
| mT | Gs | KAm | Oe | KAm | Oe | KJ/m3 | MGOe | ℃ | %/℃ | ||
| NdFeB Flexible Magnet | R2 | 250-350 | 2500-3500 | 120-200 | 1500-2500 | 150-320 | 2000-4000 | 12-20 | 1.5-2.5 | 120℃ | -0.11 |
| R3 | 330-430 | 3300-4300 | 170-250 | 2100-3100 | 380-540 | 4800-6800 | 20-28 | 2.5-3.5 | 120℃ | -0.11 | |
| R4 | 380-480 | 3800-4800 | 210-300 | 2700-3700 | 540-700 | 6800-8000 | 28-36 | 3.5-4.5 | 120℃ | 0.11 | |
| R5 | 430-530 | 4300-5300 | 250-340 | 3200-4200 | 620-780 | 7800-9800 | 36-44 | 4.5-5.5 | 120℃ | -0.11 | |
| R6 | 480-580 | 4800-5800 | 290-380 | 3700-4700 | 630-800 | 8000-10000 | 44-52 | 5.5-6.5 | 120℃ | -0.11 | |
| R7 | 530-630 | 5300-6300 | 340-420 | 4300-5300 | 670-880 | 8500-11000 | 52-60 | 6.5-7.5 | 120℃ | -0.11 | |
| R8 | 570-670 | 5700-6700 | 350-440 | 4500-5500 | 670-880 | 8500-11000 | 60-68 | 7.5-8.5 | 120℃ | -0.11 | |
| RE2 | 250-350 | 2500-3500 | 120-200 | 1500-2500 | 150-320 | 2000-4000 | 12-20 | 1.5-2.5 | 100℃ | -0.16 | |
| RE3 | 350-450 | 3500-4500 | 170-250 | 2100-3100 | 280-440 | 3500-5500 | 20-28 | 2.5-3.5 | 100℃ | -0.16 | |
| RE4 | 450-550 | 4500-5500 | 200280 | 2500-3500 | 350-440 | 4500-5500 | 28-36 | 3.5-4.5 | 100℃ | -0.17 | |
| RE5 | 550-650 | 5500-6500 | 200280 | 2500-3500 | 350-440 | 4500-5500 | 36-44 | 4.5-5.5 | 100℃ | -0.17 | |
Core value: Provides high magnetic holding force or sensing signal within limited installation space, while resisting vibration, temperature changes, oil, moisture, and other industrial environment conditions.
Key Features:
Customisation:
Typical Applications:
Frequently Asked Questions (FAQ)
Q: What is the difference between neodymium flexible magnet and ordinary ferrite flexible magnet?
A: Magnetic strength. At the same thickness, neodymium flexible magnet has 2–3 times the surface field of ferrite, and 5–10 times the energy product. It is suitable for industrial applications requiring higher magnetic force in a more compact space.
Q: Can I drill holes or screw into a neodymium flexible magnet?
A: Pre‑punching during manufacturing is recommended. Field drilling may damage the magnetic powder layer, causing local field reduction or edge cracking.
Q: Will this magnet be damaged in an oily environment?
A: The standard CPE matrix is not oil‑resistant. Please choose the NBR (nitrile rubber) matrix grade – it has good resistance to mineral oils and hydraulic fluids.
Q: What is the minimum order quantity (MOQ)?
A: Standard rolls (fixed width): 1,000 metres. Custom die‑cut parts: 5,000 pieces (new tooling). Special matrix (e.g., NBR oil‑resistant grade): 1,000 m² or equivalent value.
Q: What technical documents can you provide?
A: TDS, MSDS, RoHS/REACH declarations, magnetic performance curves, pole pitch inspection reports, etc.
This High Strength Flexible Neodymium Rubber Magnet Sheet solves the pain point of insufficient magnetic force of ordinary rubber magnets. It adopts high-grade NdFeB magnetic core, with magnetic force far exceeding that of conventional soft magnets, while maintaining flexible, bendable and cuttable characteristics, suitable for multi-scenario adsorption.
